-20%
Panasonic PT-RQ25K (21,000 lm / 4K+ / Laser / 3-Chip DLP™)
4,500,000.00 ฿ 3,610,000.00 ฿
PT-RQ25K
4K+ / 3 DLP Laser light source 3-chip DLP™ projector
ความสว่าง(ANSI Lumens) 21,000
ความละเอียด(พิกเซล) 3840 x 2400 (4K)
Contrast 20,000:1
การรับประกันตัวเครื่อง 3 ปี หลอดภาพ 3 ปี หรือ 20,000 ชม.
4K+ / 3 DLP / Dual Laser light source 3-chip DLP™ projector
ความสว่าง(ANSI Lumens) 31,000
ความละเอียด(พิกเซล) 3840 x 2400
Contrast 20,000:1
การรับประกันตัวเครื่อง 3 ปี หลอดภาพ 3 ปี หรือ 20,000 ชม.
ความสว่าง(ANSI Lumens) 31,000
ความละเอียด(พิกเซล) 3840 x 2400
Contrast 20,000:1
การรับประกันตัวเครื่อง 3 ปี หลอดภาพ 3 ปี หรือ 20,000 ชม.
Product Specifications
| PT-RQ25K | |
|---|---|
| PROJECTOR TYPE | 3-Chip DLP™ projector |
| DLP™ chip | |
| – DLP™ CHIP I Panel size | 20.3 mm (0.8 in) diagonal (16:10 aspect ratio) |
| – DLP™ CHIP I Display Method | DLP™ chip x 3, DLP™ projection system |
| – DLP™ CHIP I Number of pixels | 2,304,000 (1920 x 1200 pixels) x 3 |
| Light source | Laser diode |
| Light output*1*2 | 20,000 lm / 21,000 lm (Center)*3 |
| Time until light output declines to 50 %*4 | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast ratio*2 | 20,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/D3LEW200 |
| Center-to-corner zone ratio*2 | 90 % |
| Lens | Optional (no lens included with this model) |
| LENS SHIFT (From the origin point of the lens mounter) |
|
| – Vertical | ±66 % (±52 % with ET-D75LE6/ET-D3LEW60, +93 %, -TBD % with ET-D75LE95, ±66 % with ET-D3LEU100, ±57 % with ET-D3LEW200) (powered) |
| – Horizontal | ±24 % (±18 % with ET-D75LE6/ET-D3LEW60, ±14 % with ET-D75LE95, -25 % / +30 % with ET-D3LEU100, ±18 % with ET-D3LEW200) (powered) |
| Keystone correction range | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |

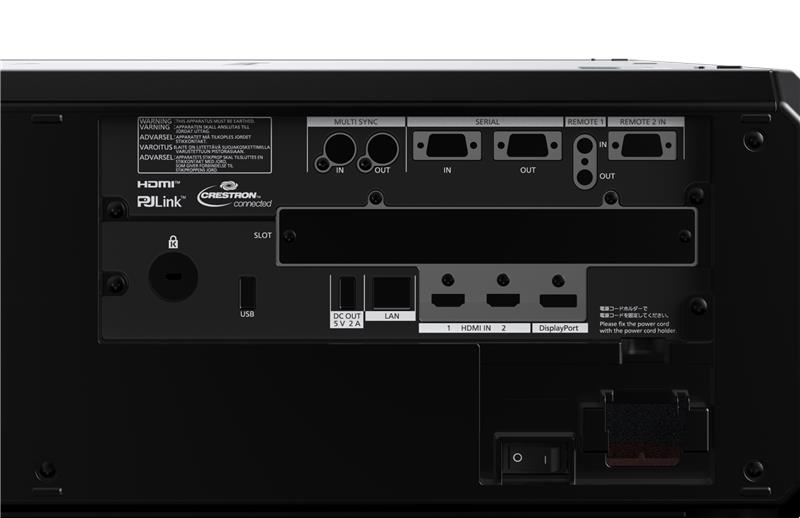

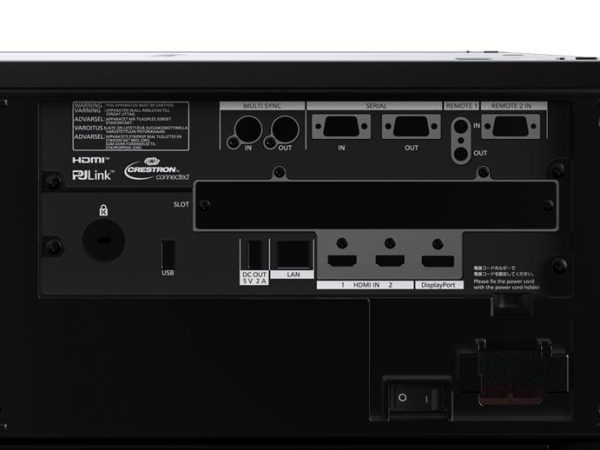

| TERMINALS | |
| – HDMI In | HDMIx 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) |
| – DisplayPort™ | DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*5) |
| – Multi Projector Sync In | BNC x 1 |
| – Multi Projector Sync Out | BNC x 1 |
| – Multi Projector Sync In/3D SYNC 1 In/Out (dual purpose) | – |
| – Multi Projector Sync In/3D SYNC 2 Out (dual purpose) | – |
| – Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| – Serial Out | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| – Remote 1 In | M3 stereo mini-jack x 1 for wired remote control |
| – Remote 1 Out | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| – Remote 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
| – LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| – USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| – DC Out | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| – Expansion Slot | Open slot for for function boards, Intel® SDM compatible |
| Power Supply | AC 100 V–120 V / AC 200 V–240 V, 50 Hz/60 Hz (The maximum value of light output is limited to 15,000 lm or less when using the projector with AC 100 V to AC 120 V. Other limitations apply*6 .) |
| Power Consumption*7 | AC 200 V–AC 240 V : 1,490 W (1,520 VA) AC 100 V–AC 120 V : 1,080 W (1,090 VA) [NORMAL] 1,330 W [ECO] 1,040 W [QUIET] 1,030 W |
| Cabinet materials | Molded plastic |
| Operation noise*2 | 46 dB (NORMAL/ECO), 43 dB (QUIET) |
| Dimensions (W x H x D) |
Approx. 550 x 220 x 570 mm (21 5/8˝ x 8 11/16˝ x 22 7/16˝ ) (not including protruding parts) |
| Weight*8 | 35 kg (77.2 lbs) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F *9), operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
