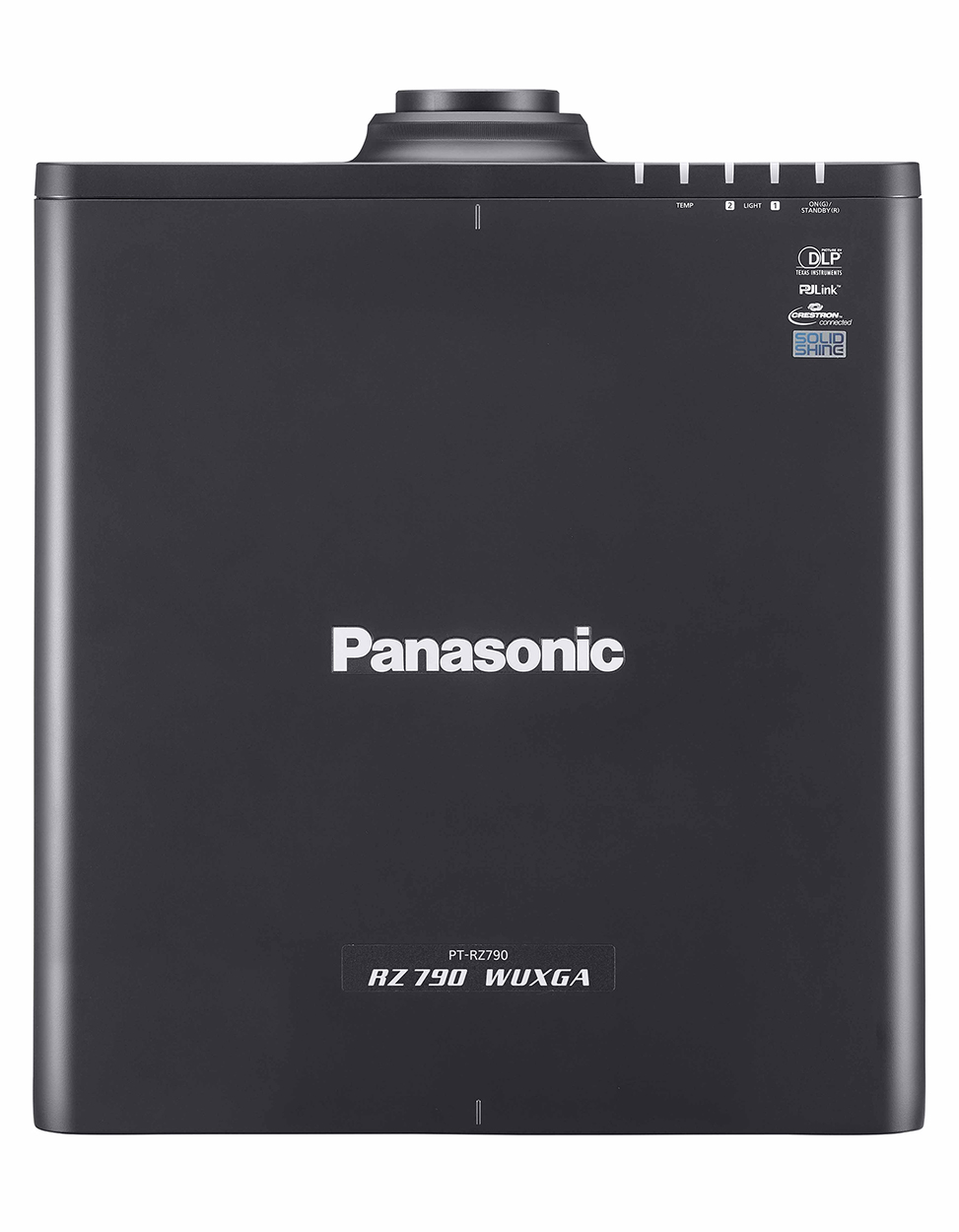

PANASONIC PT-RZ790BA ( 1Chip DLP / 7,000 lm / WUXGA) All LASER
630,000.00 ฿ 530,000.00 ฿
PANASONIC PT-RZ790BA ( 1Chip DLP / 7,000 lm / WUXGA) All LASER
- ความสว่าง : 7,000 ANSI Lumens
- ความละเอียด : 1920×1200(WUXGA)
- ค่า Contrast : 10,000:1
- ขนาดภาพ: 50 – 600 นิ้ว
- การรับประกันตัวเครื่อง 2 ปี หลอดภาพ 1 ปีหรือ 1,000 ชม.
PANASONIC PT-RZ790BA ( 1Chip DLP / 7,000 lm / WUXGA) All LASER
 PT-RZ790/RZ790L |
 PT-RZ690/RZ690L |
|
|---|---|---|
| Projector type | 1-Chip DLP™ projector | |
| DLP™ chip | ||
| Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 1, DLP™ projection system | |
| Number of pixels | 2,304,000 (1920 x 1200 pixels) | |
| Light source | Laser diodes | |
| Light output | 7,000 lm (Normal)*1/7,200 lm (Center)*2/5,600 lm (Eco)*1 2,800 lm (Long Life 1)*1/2,300 lm (Long Life 2)*1/1,900 lm (Long Life 3)*1 |
6,000 lm (Normal)*1/6,200 lm (Center)*2/4,800 lm (Eco)*1 2,400 lm (Long Life 1)*1/2,000 lm (Long Life 2)*1/1,600 lm (Long Life 3)*1 |
| Time until light output declines to 50 %*3 | 20,000 hours (Normal)/24,000 hours (Eco) | |
| Resolution | 1920 x 1200 pixels | |
| Contrast ratio*1 | 10,000:1 (Full On/Full Off, Dynamic Contrast [3]) | |
| Screen size (diagonal) | 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio |
|
| Center-to-corner zone ratio*1 | 90 % | |
| Lens | PT-RZ790/RZ690: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm PT-RZ790L/RZ690L: Optional powered zoom/focus lenses |
|
| Lens shift*4 (From the origin point of the lens mounter) | ||
| Vertical | +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered) | |
| Horizontal | +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered) |
|
| Keystone correction range | Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020) |
|
| Keystone correction range with optional ET-UK20 Upgrade Kit | Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
|
| Installation | Ceiling/floor, front/rear, free 360-degree installation | |
| Terminals | ||
| SDI IN | BNC x 1: 3G/HD/SD-SDI input | |
| HDMI IN | HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5) | |
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) | |
| RGB 1 IN | RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR | |
| RGB 2 IN | D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR | |
| SERIAL/MULTI PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| SERIAL/MULTI PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control | |
| REMOTE 1 IN | M3 x 1 for wired remote control | |
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) | |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |
| DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5 | |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | |
| Power supply | AC 100–240 V, 50/60 Hz | |
| Power consumption | 545 W (Normal)/435 W (Eco) 215 W (Long Life 1)/195 W (Long Life 2)/170 W (Long Life 3) |
490 W (Normal)/395 W (Eco) 200 W (Long Life 1)/180 W (Long Life 2)/160 W (Long Life 3) |
| Cabinet materials | Molded plastic | |
| Operation noise*1 | 36 dB (Normal) | 35 dB (Normal) |
| Dimensions (W x H x D) | PT-RZ790/RZ690: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) (with supplied lens) PT-RZ790L/RZ690L: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝) (without lens) |
|
| Weight*7 | PT-RZ790/RZ690: Approx. 22.1 kg (48.7 lbs) (with supplied lens) PT-RZ790L/RZ690L: Approx. 21.3 kg (47.0 lbs) (without lens) |
|
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ | |
| TerminalsPT-RZ990/RZ990L PT-RZ890/RZ890L PT-RZ790/RZ790L PT-RZ690/RZ690L |
 |
|
